The KRGS Series II Aluminium shutter has a 75mm interlocking slat curtain that is manufactured from aluminium extrusion. This provides an attractive appearance without compromising door security. Lightweight and highly-resilient, our modern and effective aluminium roller shutters provide Sydney businesses and homes with premium protection from outside and unwanted intrusion.
When it comes to installing aluminium roller doors or aluminium security shutters, you can trust KRGS Doors. Sydney-based, our team distributes quality aluminium products all across Australia. We provide roller aluminium shutters in Sydney, Perth, Melbourne, Brisbane and major cities throughout the country. With expert installation services through local accredited installers, you can trust the KRGS Doors network. Click through to our Contact page to lodge an enquiry form and to get in touch with a local sales representative.
Made from durable aluminium, our security shutters can withstand both exposure to unfavourable environmental conditions, as well as providing an effective barrier against forced intrusion. Thanks to the quality of our custom-made aluminium roller shutters, Sydney locals from all walks of life and from across the city can enjoy peace of mind for an affordable price.
Aluminium roller shutters offer a balance of lightweight usability with strong durability and security. Our specialty aluminium roller shutter doors and aluminium security shutters provide Sydney, Melbourne, Perth, Brisbane and any other Australian-based business owner with total peace of mind about the safety of their stock.
With our reliable and resilient aluminium shutters, Sydney, Brisbane and Perth businesses can increase their property’s security while further deterring would-be intruders from thinking their storefront is an easy target.
With more than 140 locations nationwide, the KRGS Doors team can assist you with aluminium shutters & doors wherever you are across Australia. This includes:
The commercial aluminium doors provided by our team are perfect for a range of workplace environments. This includes retail and shopfront locations, industrial settings, and other commercial real estate settings. Whether you’re looking for aluminium storefront doors in Melbourne, or commercial aluminium doors in Sydney, the Series II Aluminium Shutter is perfect for you.
To find out more about our cost-effective and long-lasting supply and installation services for aluminium storefront doors and shutters, speak to a member of our helpful and friendly team on 1800 897 822.
Product Information
Technical Specifications
Images

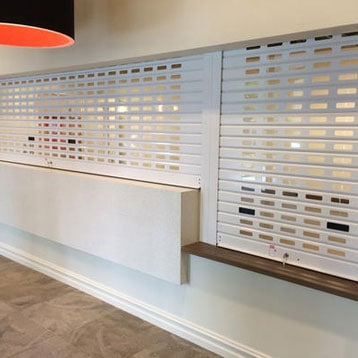

Ideal for shopping centres, shop fronts, club and hotel bars, counter tops, kiosks, arcades, serveries, sporting clubs and stadiums, airports, fire reel cupboards, schools and doorways.
Manual operation, push-up and pull-down with supplied pull stick. Shutters can be electrically motorised with key switch or remote control operation as an optional extra. Optional Battery Backup System available.
Supply and install Aluminium Shutter Series II manufactured by KRGS Roller Grilles and Shutters 02 9608 9888.
Clear anodised is the standard, whilst Dulux powder coat range is available as an optional extra.
Single aluminium shutters can be manufactured up to a width of 3600mm manual operation, maximum door width up to 6000mm when motorised. Larger openings can be fitted with multiple doors with a combination of standard or corner mullions.
A 12 month warranty against defective materials and workmanship applies.
Note: KRGS has a continuous program of development sizes or configuration of product may change at any time. For the latest in design and specification please consult with KRGS by calling us.
Series II Aluminium Shutter - Solid Slat Brochure
Series II Aluminium Shutter - Slotted Slat Brochure
Series II Aluminium Shutter - Perforated Slat Brochure
Technical Specs A
Download CAD File
Technical Specs B
Download CAD File
Technical Specs C
Download CAD File
Technical Specs D
Download CAD File
Technical Specs H
Technical Specs I
Download CAD File
Technical Specs J
Download CAD File
KRGS Wiring Diagram
The curtain is constructed using interlocked 75mm x 2.0mm heavy duty extruded aluminium slats. The design of the slat produces a V shape front surface to ensure strength. The ends of these aluminium sections are fitted with a nylon end clip to ensure quiet and smooth operation. Optional slotting with acrylic infills is available to provide a viewing area. Please consult your KRGS Technician about your requirements.
The bottom rail is manufactured from an extruded aluminium section 90mm in height and 25mm in width. The locking mechanism for the shutter is concealed in this rail and can be key operated from both sides.
Lcoking is a two way key mortice lock mounted in the centre of the bottom rail, that slides a steel shoot bolt out into the side guides. Optional locking position allows an option for locking rail at waist height from both inside and out. Multiple doors can also be keyed alike.
Side Guides are 50mm deep by 30mm wide extruded aluminium suitable for face fit or through the mouth of the guide if fitted between walls.
The standard 180 degree mullion is manufactured from an extruded aluminium section 150mm wide x 30mm; a steel shoot bolt secures the mullion into the floor. Special mullions are also available to suit a variety of degrees and applications. Special wide mullions can be manufactured to suit any angle shall be fabricated with 1.6mm aluminium sheet securely fitted to our standard side guides for angle openings where doors need to be stacked.
Brackets are manufactured from slotted 90mm x 40mm mild galvanized steel.
The drum is manufactured using a 150mm diameter tube if manual or if motorised it is a 229mm diameter tube with an internal spring designed to counterbalance the operation of the shutter.
Are you not sure which door is the best application for your project? KRGS’ White Paper will be able to assist in guiding you as to what door is best to meet your needs. A door design with you in mind, there is a KRGS product option to suit most of your requirements.
