The KRGS Counterline Aluminium shutter has a slimline 44mm, flat slat curtain, manufactured from aluminum extrusion to provide quality, strength with ease of use and aesthetic appeal.

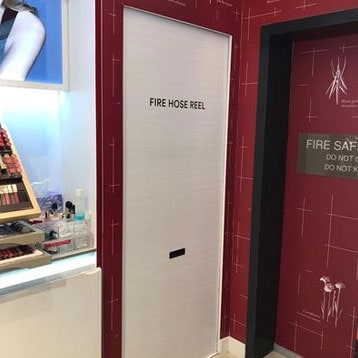

Suitable applications include shopping centres, shop fronts, club and hotel bars, counter tops, kiosks, arcades, serveries, sporting clubs and stadiums, airports, fire reel cupboards, schools and doorways.
The KRGS Counterline Shutter can be slotted to provide ventilation where necessary or remain solid to keep out vermin and debris.
The KRGS Counterline Shutter can be supplied in a vast arrange of sizes and colour finishes to suit all decors.
Shopping Centres, Shop fronts, Club and Hotel Bars, Counter Tops, Kiosks, Arcades, Serveries, Sporting Clubs and Stadiums, Airports, Fire Reel Cupboards, Schools and Doorways.
Manual operation, push-up and pull-down with supplied pull stick. Shutters can be electrically motorised with key switch or remote control operation as an optional extra. Optional Battery Backup System available.
Supply and install Counterline Shutter manufactured by KRGS 02 9608 9888
Clear anodised is the standard, whilst Dulux powder coat range is available as an optional extra.
The Counterline shutters can be manufactured up to a width of 3.0m or a total of 9 square metres. Larger openings can be fitted with multiple doors with a combination of standard or corner mullions.
A 12 month warranty against defective materials and workmanship applies.
Counterline Aluminium Shutter Brochure
Technical Specs A
Technical Specs B
Technical Specs C
Technical Specs D
Technical Specs G
Technical Specs H
Technical Specs I
Technical Specs J
KRGS Wiring Diagram
The curtain is constructed using interlocked 42mm x 1.5mm extruded aluminium slats; the design of the slat produces a flat front surface ideal for counter shutter application. The ends of these aluminium sections are fitted with a nylon end clip to ensure quiet and smooth operation.
The bottom rail is manufactured from an extruded aluminium section 70mm in height and 10mm in width. The locking mechanism for the shutter is concealed in this rail and can be key-operated from both sides.
Locking is a two way key mortice lock mounted in the centre of the bottom rail, that slides a steel shoot bolt out into the side guides. Standard locking position allows for inside-outside locking.
Multiple doors can also be keyed alike.
Side Guides are 37mm deep by 25mm wide extruded aluminium suitable for face fit or through the mouth of the guide if fitted between walls.
The standard 180 degree mullion is manufactured from an extruded aluminium section 112mm wide x 29mm; a steel shoot bolt secures the mullion into the floor or counter top. Special mullions are also available to suit a variety of degrees and applications.
Brackets are manufactured from slotted 90mm x 40mm mild galvanized steel.
The drum is manufactured using a 150mm diameter tube if manual or if motorised it is a 229mm diameter tube with an internal spring designed to counterbalance the operation of the shutter.
Are you not sure which door is the best application for your project? KRGS’ White Paper will be able to assist in guiding you as to what door is best to meet your needs. A door design with you in mind, there is a KRGS product option to suit most of your requirements.
